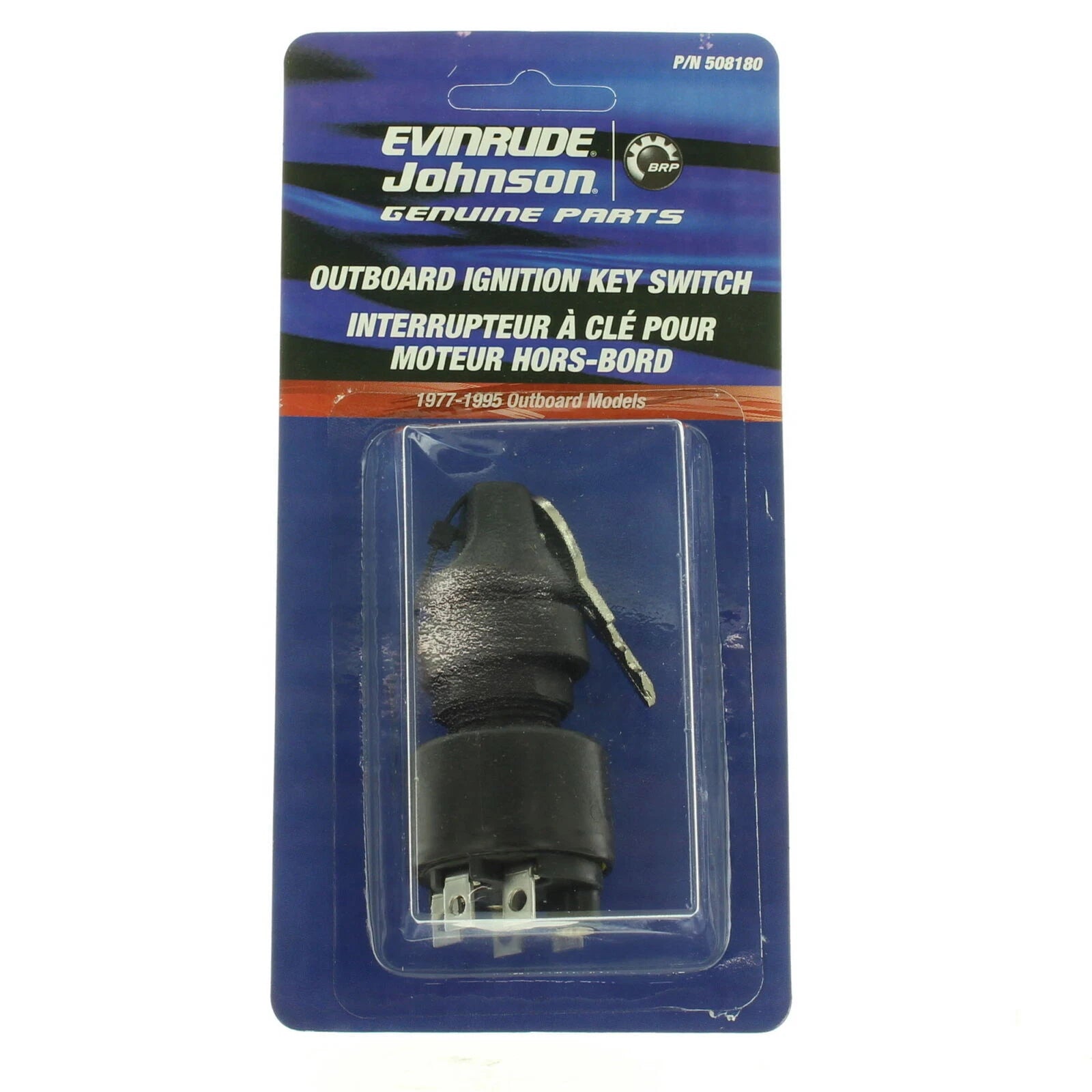

This specific part is part of the 77 Series and is designed for outboard models manufactured between 1977 and 1995. It features a "push-to-choke" operation and standard OFF-ON-START positions.
Key Features:
Terminals: 6-screw terminals (Battery, Choke, Ignition, Start, and two Magneto terminals).
Operating Voltage: 12 Volts DC.

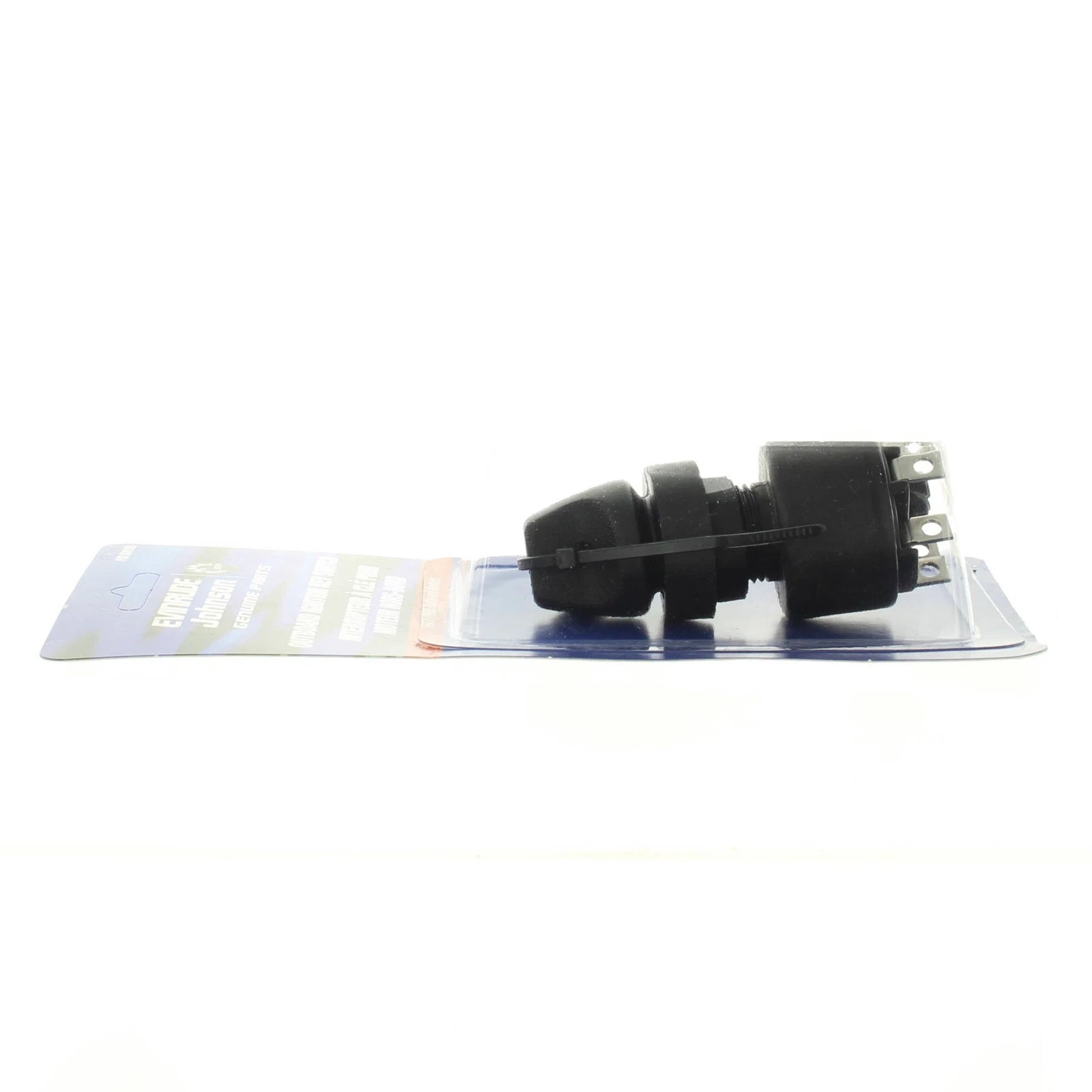

Mounting: Fits panels up to 5/8-inch thick and features a plastic housing with a short stem.
Supersession: This part number supersedes several older part numbers, including 0393301, 0388173, and 0005483.
