Yamaha Water Pump Repair Kit (61A-W0078-A3-00 -> 61A-W0078-A4-00)
2-Stroke
Fits HP Ranges
- 225
- 250 (92~)
- S150
- SX150
- S200
- SX200
- S250
- SX250
- V150~V250
- VX150~VX250
- VZ150~VZ200 (2.6L)
- Z150~Z300
- P150~P200
- C150 (97~99)
- PX150 (99)
4-Stroke
Fits HP Ranges
- F150
- F200
- F225

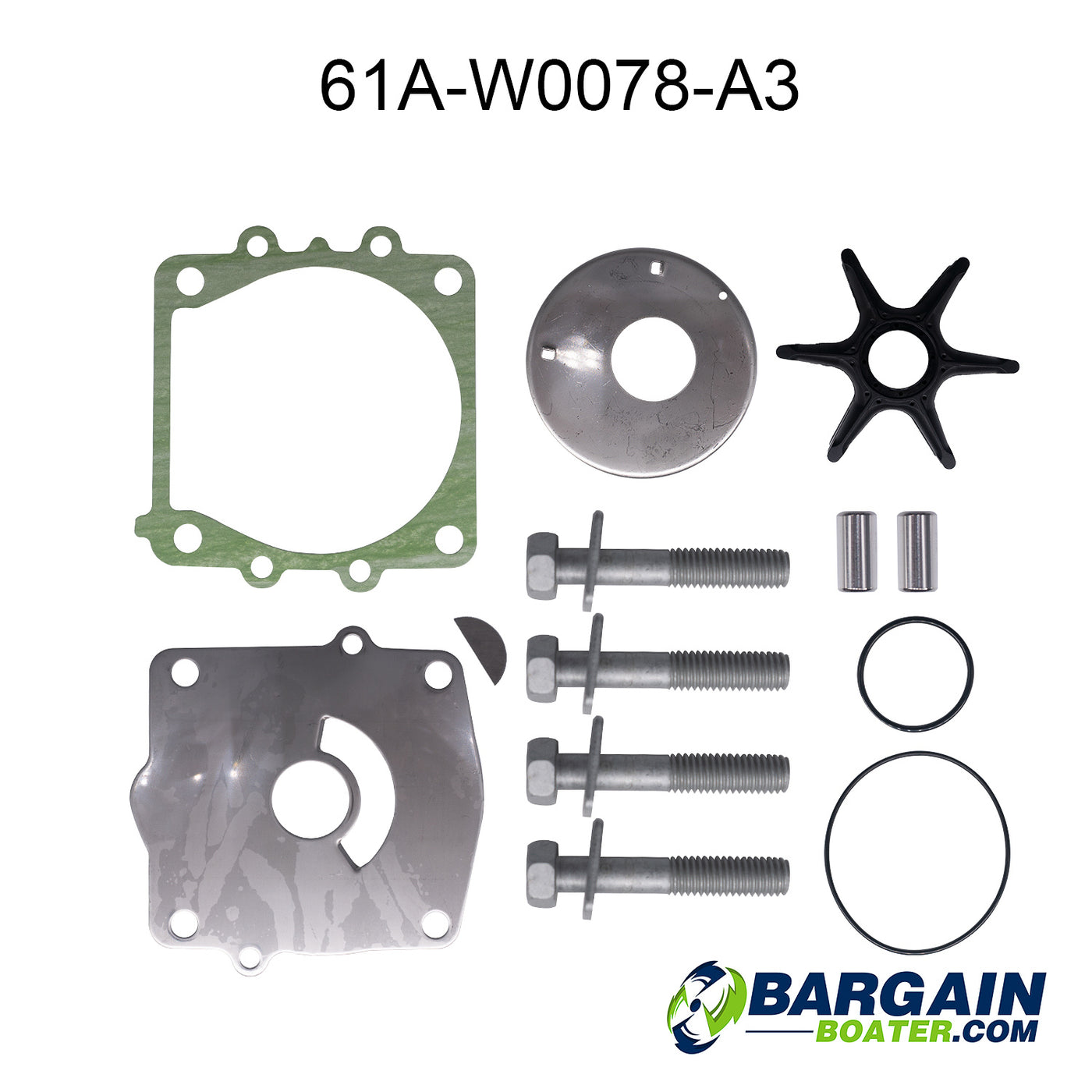

Application:
- (1) Insert, Cartridge 61A-44322-02-00
- (1) O-Ring 93210-86M38-00
- (1) O-Ring 93210-37M67-00
- (1) Impeller 6E5-44352-01-00
- (1) Outer Plate, Cartridge 6G5-44323-01-00
- (1) Gasket, Water Pump 6E5-44315-A0-00
- (2) Pin, Dowel 93606-12019-00
- (4) Bolt, With Washer 90119-08M14-00
- (1) Key, Woodruff 90280-04M05-00
