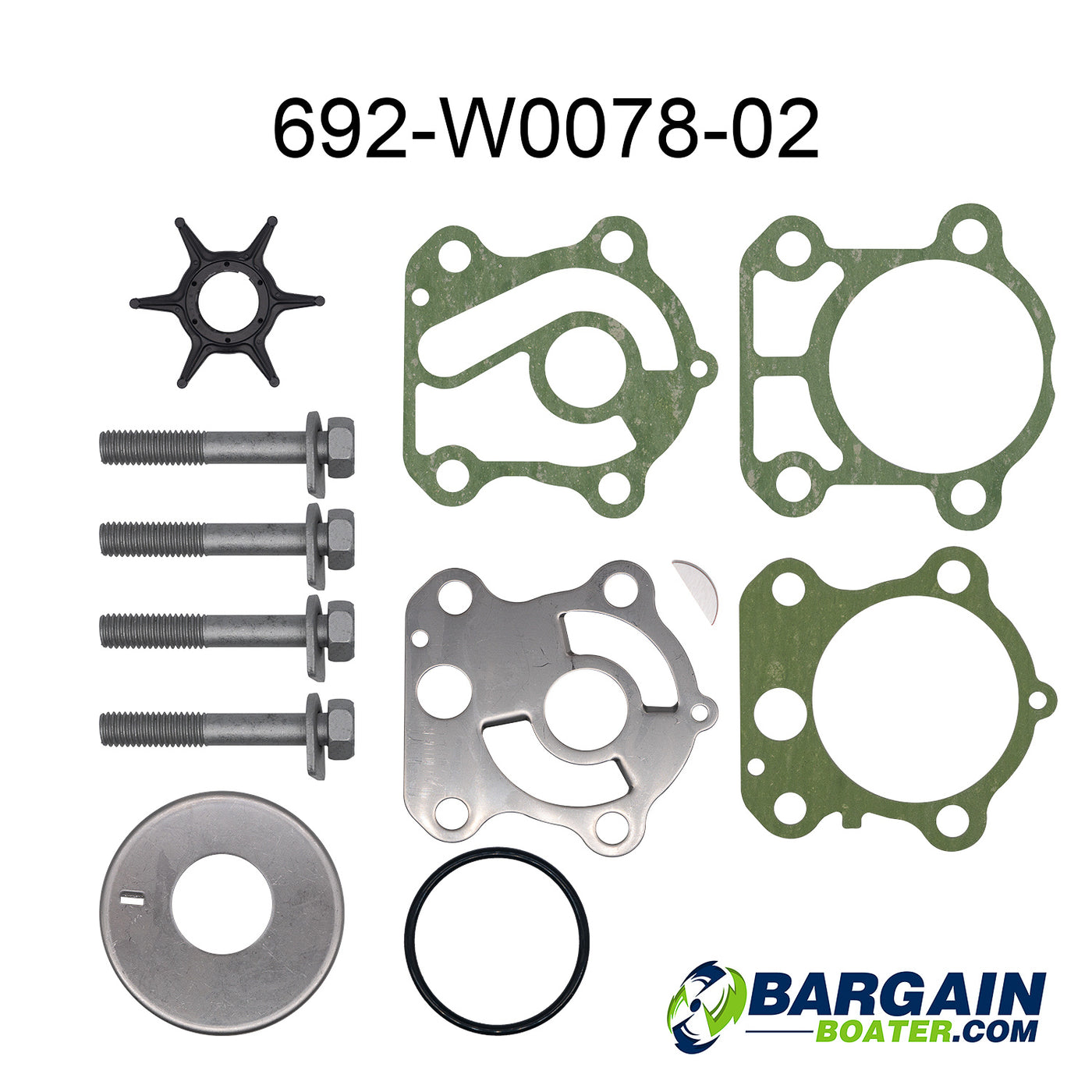

Yamaha Water Pump Repair Kit (692-W0078-02-00)
2-Stroke
Fits HP Ranges
- 60
- 70 (04~)
- C75
- P75
- C80
- 90
- B90
- C90 (97~)
- E75
Application:
- (1) Insert, Cartridge 688-44322-00-00
- (1) Impeller 688-44352-03-00
- (1) Gasket, Water Pump 688-44315-A0-00
- (1) Outer Plate, Cartridge 688-44323-00-00
- (1) Gasket, Cartridge 688-44324-A0-00
- (1) Gasket, Water Pump 688-44316-A0-00
- (1) O-Ring 93210-46044-00
- (2) Bolt, With Washer 90119-08M13-00
- (2) Bolt, With Washer 90119-08M16-00
- (1) Key, Woodruff 90280-04M04-00
