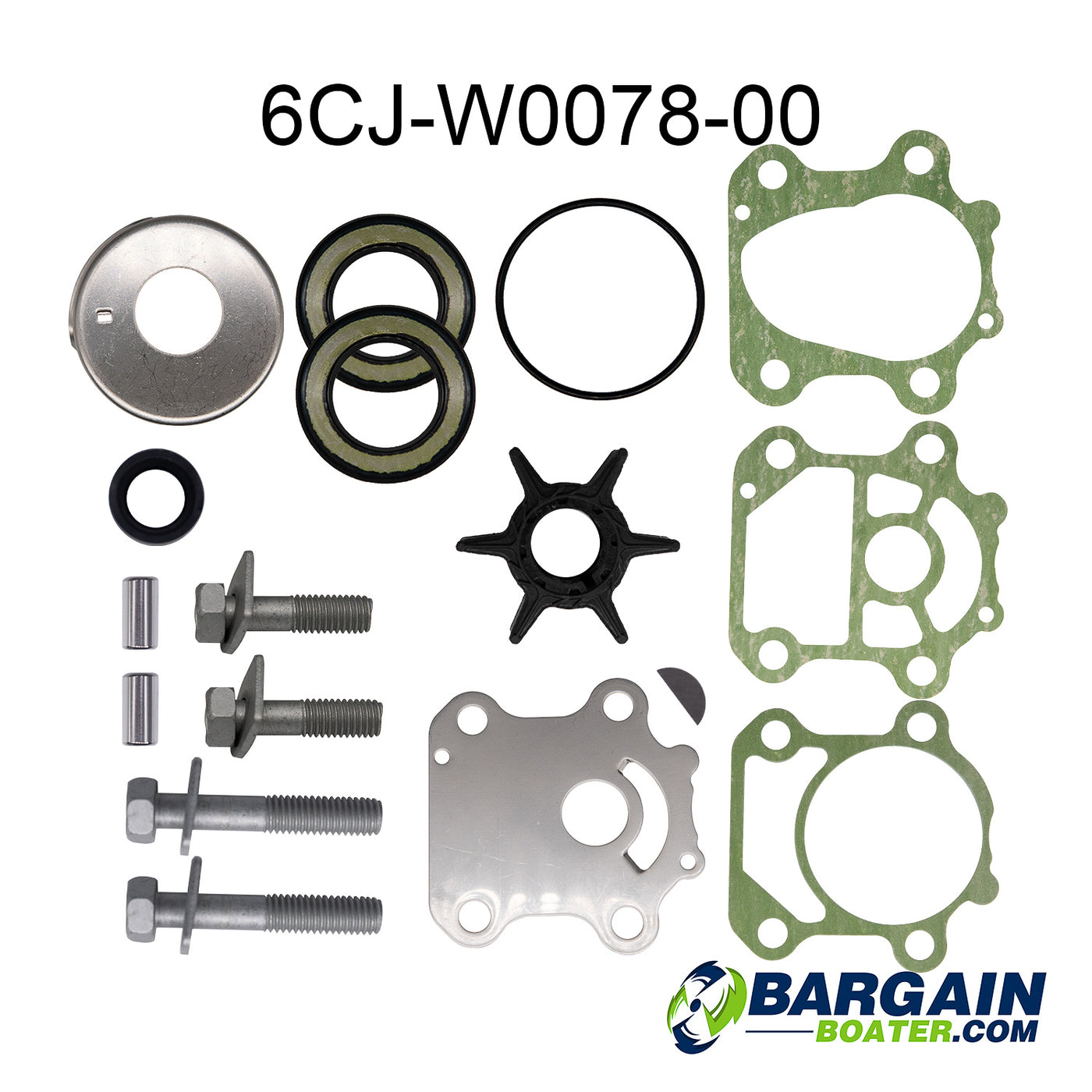

Yamaha Water Pump Repair Kit (6CJ-W0078-00-00 -> 6CJ-W0078-01-00)
4-Stroke
Fits HP Ranges
- F70
Application:
- (1) Insert,Cartridge 63D-44322-00-00
- (1) Gasket, Water Pump 6CJ-44315-00-00
- (1) Cover, Pump Housing 63D-44312-00-00
- (1) Damper, Water Seal 2 663-44366-00-00
- (1) Impeller 6H3-44352-00-00
- (1) Key, Woodruff 90280-03M03-00
- (2) Oil Seal 93101-23070-00
- (1) O-Ring 93210-46044-00
- (1) Gasket, Water Pump 6CJ-44316-00-00
- (1) Outer Plate, Cartridge 6CJ-44323-00-00
- (1) Gasket, Cartridge 6CJ-44324-00-00
- (2) Pin, Dowel 93604-10M03-00
- (2) Bolt, With Washer 90119-08M33-00
- (2) Bolt, With Washer 90119-08M14-00
